SOD-323 Component Package

SOD-323 (Small-outline Diode 323) is a family of 2-lead SMD component packages, commonly used for diodes.

The are four variants, with the key differences being:

• SOD-323: Bent leads.
• SOD-323F: Flat leads (better heatsinking).
• SOD-323FL: Flat leads, with one longer than the other (even better heatsinking).
• SOD-323HE: ?

Solderability: Reflow is recommended. Easy to solder by hand.

Pitch: 2.2mm¹

Similar To:

• SOD-123 (larger)
• SOD-523 (smaller)
• SOD-723 (even smaller)
• SOD-923 (smallest)

SOD-323 (Standard Variant)

SOD-323 is a 2 lead, SMD component package commonly used for diodes. Without any other suffixes, SOD-323 typically refers to bent lead variant, also known as SC-76 (JEITA).¹

Synonyms:

• SC-76 (JEITA)

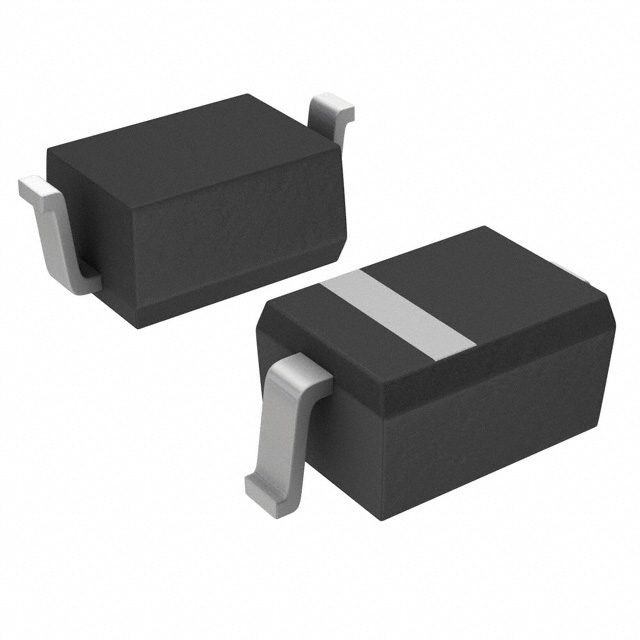

3D model of the SOD-323 component package.

It has the following core dimensions:

Property	Dimension (nominal)1
Body Length	1.7mm
Body Width	1.25mm
Body Height	0.95mm

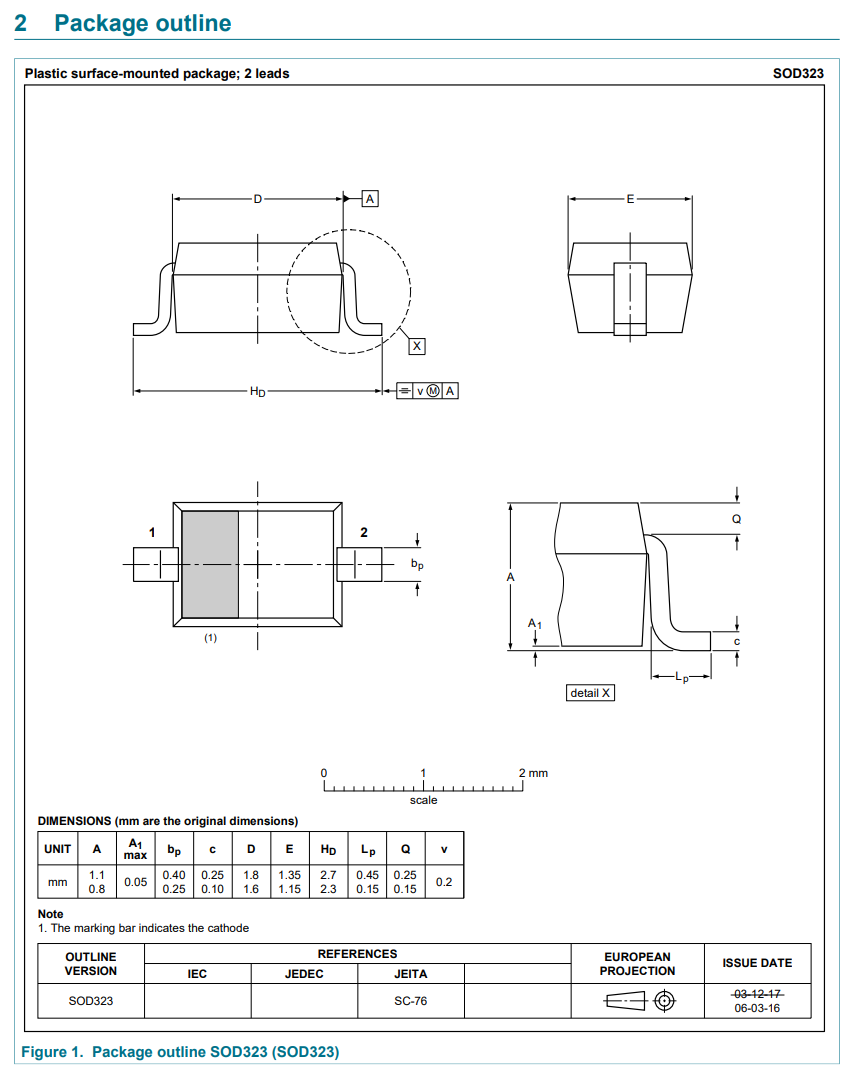

Dimensions for the SOD-323 component package¹.

Thermal Resistance:

• $R_{\theta(ja)} = 450K/W$ (FR4 PCB, single-sided copper, standard footprint)²
• $R_{\theta(ja)} = 210K/W$ (FR4 PCB, single-sided copper, standard footprint but with $1cm^2$ mounting pad for cathode)²
• $R_{\theta(jc)} = 90K/W$ (from junction to solder point)²

Typical PCB Land Area: $13.75mm^2$ (5x2.75mm)¹

SOD-323F (Flat Lead Variant)

The SOD-323F is a variant which has flat leads instead of the bent leads in the standard SOD-323. It has the same body dimensions as the standard SOD-323.

Synonyms

• SC-90: JEITA (EIAJ).
• SOD-323F-2: Mouser³.
• SOD-323FL: Rohm⁴.
• UMD2: Rohm⁴.

WARNING: Rohm uses the name SOD-323FL to refer to the same package as many other manufacturers call SOD-323F⁴. Central Semiconductor also uses the package name SOD-323FL, but this refers to a different variant with different sized leads (see below).

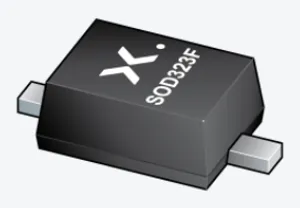

3D render of the SOD-323F component package⁵.

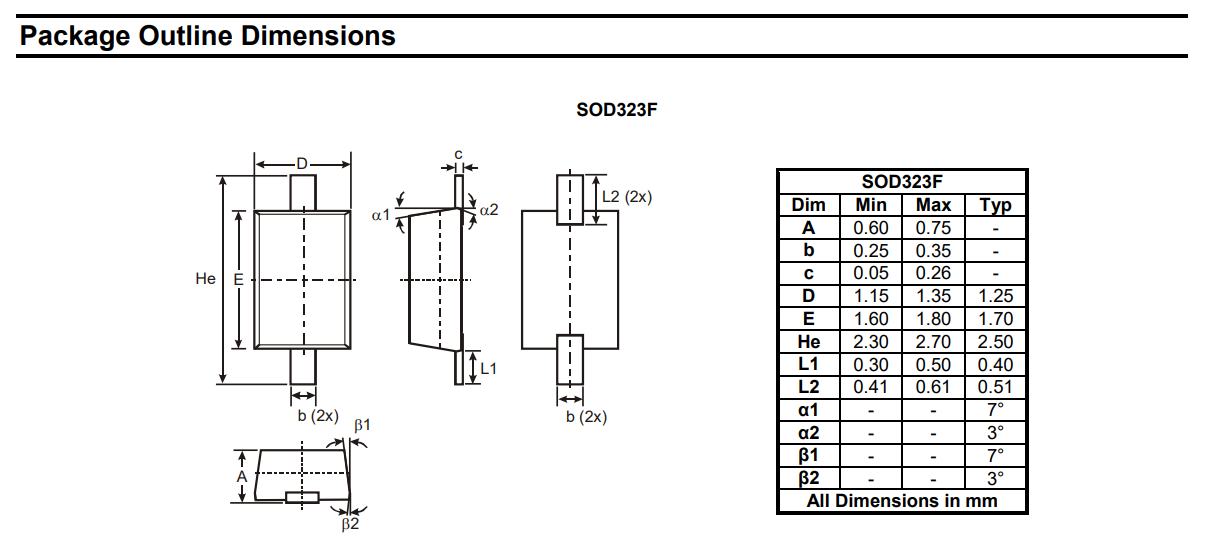

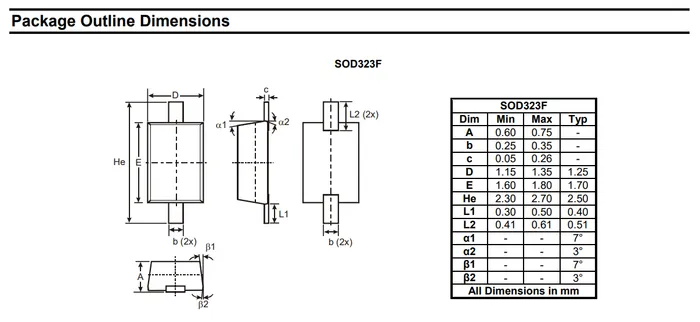

Package dimensions of the SOD-323F component package⁶.

SOD-323FL (Central Semiconductor Variant)

Central Semiconductors version of the SOD-323FL (the FL is presumably an acronym for Flat Leads) is another variant of the SOD-323 with flat leads, except one of the leads is much longer than the other⁷. This improves the heatsinking of the package even more than that of the SOD-323F variant.

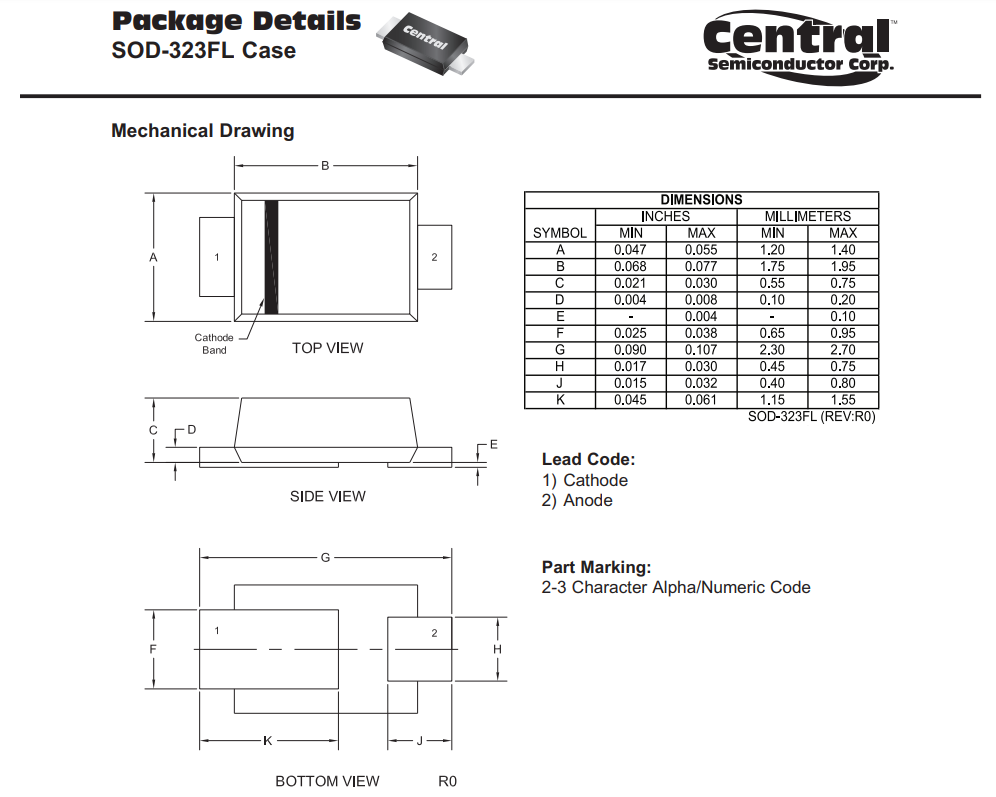

Package dimensions of the Central Semiconductor SOD-323FL component package⁷.

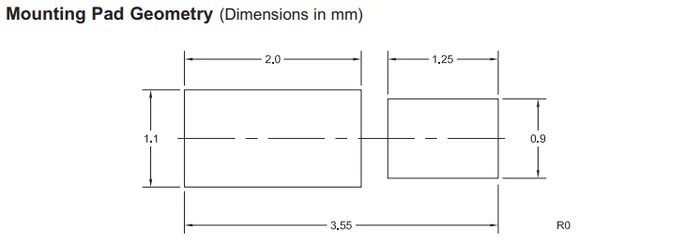

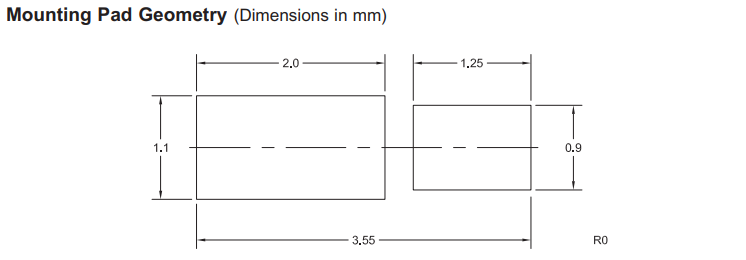

Recommended land pattern for the Central Semiconductor SOD-323FL component package⁷.

SOD-323HE

I’m not sure what the distinguishing features of the SOD-323HE package are. It appears to be a SOD-323 with a flat lead style.

Synonyms:

• SC-108B (JEITA)⁸
• TUMD2M (Rohm)⁸

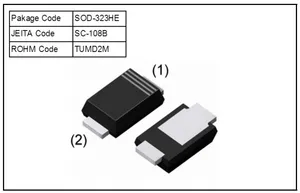

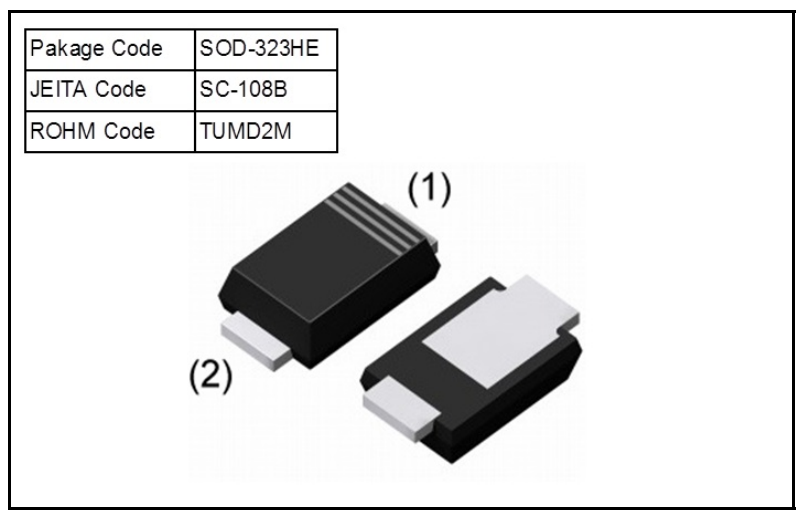

3D model of the SOD-323HE component package⁸.

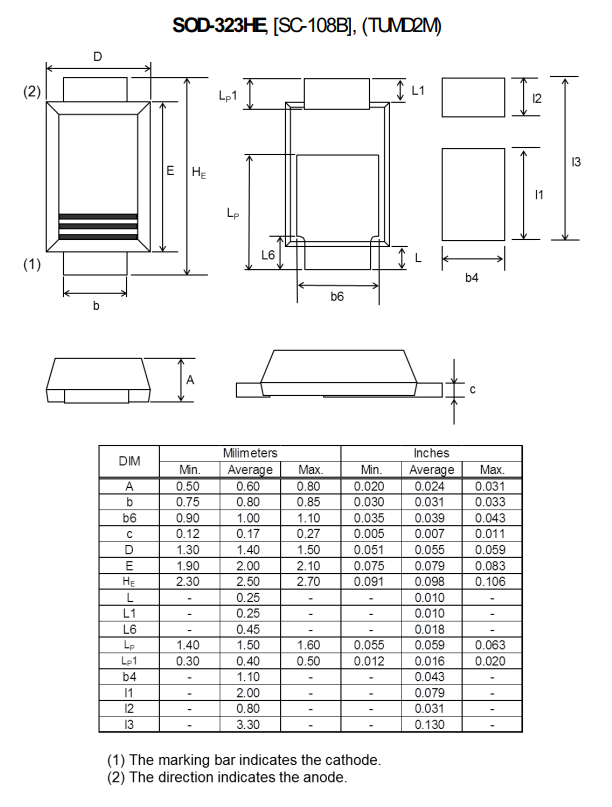

Package dimensions of the SOD-323HE component package⁸.
