Enclosures

Plastic Enclosures

Examples

Hammond 1554 Series

The Hammond 1554 series is a family of watertight polycarbonate and ABS enclosures. They offer IP protection up to IP68.

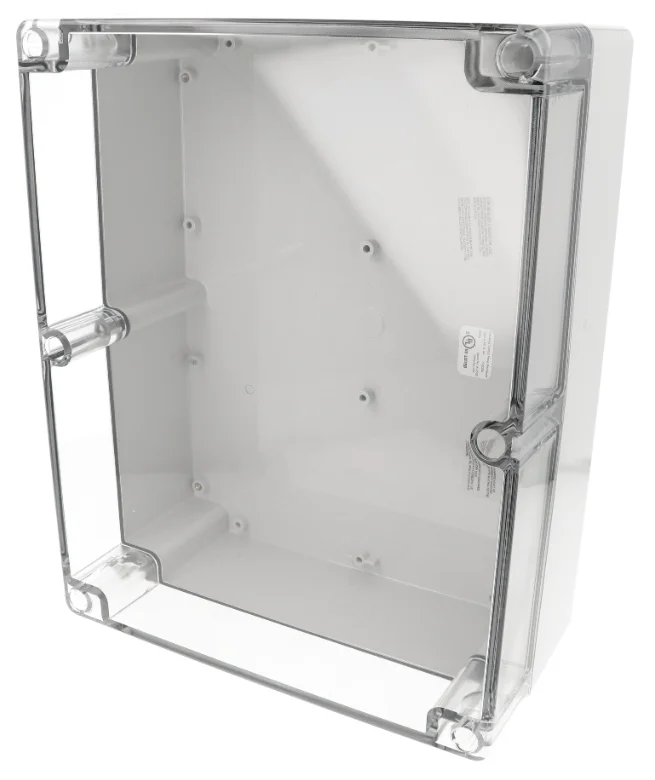

A photo of the Hammond 1554YA2GYCL 300x240mm polycarbonate enclosure.¹

The ABS version is rated for indoor use only while the polycarbonate version is rated for outdoor use. The ABS version is available with a grey lid, whilst the polycarbonate version offers a grey, clear or smoked lid.

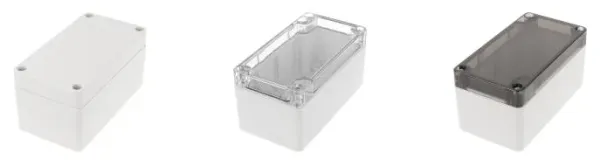

The different lid options available for the Hammond 1554 series polycarbonate enclosures (only grey lids available for the ABS version).²

Extruded Aluminium Enclosures

Extruded aluminium enclosures consist of one piece of box-section aluminium for the body, with two plastic/metal end caps and a optional bezel. These enclosures are really good for small/medium PCB projects. The extruded aluminium normally has guide rails on the insides so that PCBs can slide into it. With the case being made of metal, heatsinking is easy.

Examples of extruded aluminium enclosures by Vero Technologies.

Note

Connectors/indicators typically have to come out from either end. Right-angled PCB mount connectors are the easy to use with this configuration (panel mount can also be used).

Hammond is a large manufacturer of this type of enclosure. See their page, Extruded Aluminium Enclosures (Metal End Panels) (1455 Series).

Some of the Compatible Connectors

Mini-DIN (circular)

Mini-XLR (circular)

Molex Micro-Fit 3.0 Series (rectangular)

Suppliers

Here is a link to DigiKey’s Boxes, Enclosures, Racks > Boxes section.
