E-Paper Displays

Authors:
Geoffrey Hunter
Geoffrey Hunter
Published On:
May 6, 2026
Last Updated:
May 7, 2026

E-Paper (electronic paper) displays are . They are sometimes called EPDs (E-Paper Displays).

E-Paper displays either come raw (no driver board) or with a driver board.

Manufacturers

E Ink

E Ink is a brand of E-Paper made by the E Ink Corporation. The founders of E Ink Corporation developed the E-Paper technology while working at the MIT media lab. E Ink Corporation was founded in 1997 and commercialized this technology.1 E-Ink is a common place terms that is sometimes used to refer to any E-Paper display.

The E Ink Corporation has displays such as a the E Ink Carta, E Ink Spectra, E Ink Kaleido.1

Pervasive Displays

Pervasive Displays is a Taiwan based E-Paper manufacturer. One of their unique selling points is extended operating temperature ranges of −20-20 to 60∘C60^\circ C or −25-25 to 70∘C70\circ C.

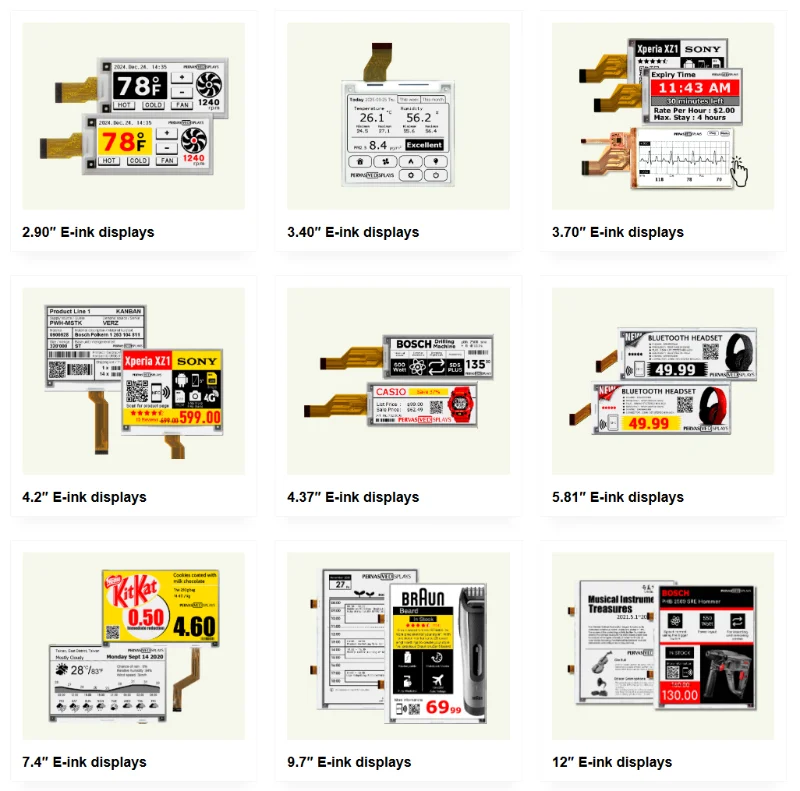

A screenshot of Pervasive Displays product offerings.2

Waveshare

Waveshare is a general purpose electronics hardware company that has a range of E-Paper displays.

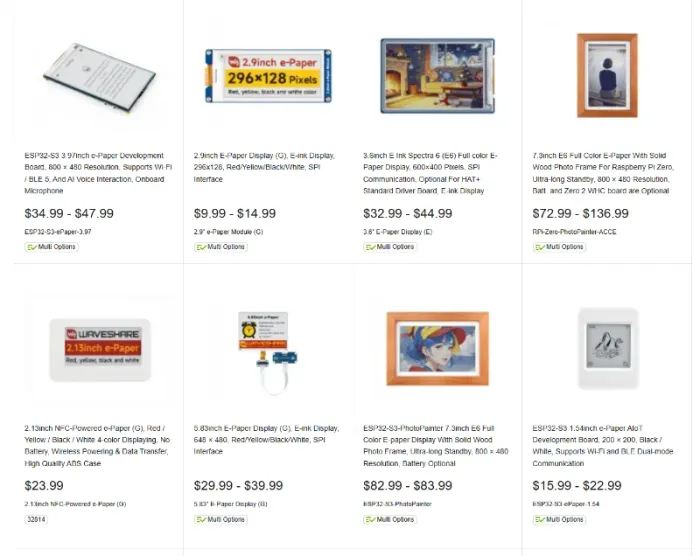

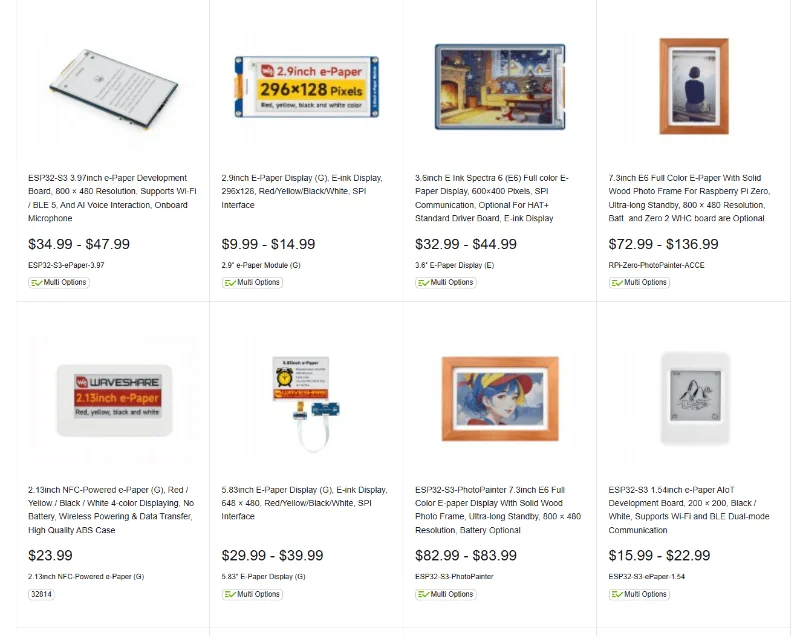

A screenshot of Waveshare’s E-Paper product offerings.3

E-Paper Lighting

Light Guide Film (LGF)

Light guide films are thin (typically 0.2-0.5 mm thick) polycarbonate, acrylic or PMMA films that use microdots or laser etched patterns to distribute side-entry light evenly across it’s surface. The light is usually provided by side mounted LEDs. Light reflects internally through the film until it hits the obstructions. These reflect the light out of the display and provide even illumination.

They can be optically bonded to the front of E-Paper displays, and along with a LED light source, can be used to illuminate the display.

Yongtek and Nanocomp are two companies that makes these films especially for E-Paper displays.45.

Cholesteric Liquid Crystal Displays (ChLCDs)

Cholesteric Liquid Crystal Displays (ChLCDs) are a type of E-Paper display that use cholesteric liquid crystals (a.k.a. chiral nematic liquid crystals6). They are bistable just like regular E-Paper displays and do not require a backlight (traditional LCD displays do), and so draw little/no power when the image is not changing. Given it’s wider temperature range than standard E-Paper displays, it is heavily marketed towards outdoor applications such as signage (e.g. bus stop signs, city information boards, etc).7

Advantages:

  • Higher operating temperature ranges (e.g. −30-30 to 85∘C85^\circ C)7
  • Better colour reproduction8

Disadvantages:

  • Narrower viewing angles
  • Worse contrast (compared to monochrome E-Paper displays)

How ChLCDs Work

ChLCDs contain three liquid crystal layers, red, green and blue. Pixels on each layer can be controlled via electrical signals which alter the local electric field around a pixel. Different voltages align the crystals in different ways which changes the optical properties of the layer. The three textures are:

  • Planar texture
  • Focal conic texture
  • Homeotropic texture: The rod-like crystals align perpendicular to the substrate. This allows the light to pass through the layer. If all RGB layers are in this state, the pixel shows the background substrate colour (typically black).9

Solar panels can also be placed behind all of the colour layers. If the colour layers are designed to pass infrared light, then a ChLCD can be used as both a display and a power source.9

Suppliers

Iris Optronics Co.

Iris Optronics Co. is a Taiwanese company that manufacturers ChLCDs. They have the following products:

  • Full Color ChLCD: A full-colour ChLCD display in 10 inch, 13.3 inch and 31.5 inch sizes.10
  • Infinity Display: A colour ChLCD with a solar panel behind it, available in 13.3 and 31.5 inch sizes.
  • Ming Display: A full-colour ChLCD with LED based illumination for night viewing.
  • ecosticker: A full-colour 10-inch ChLCD display.

Iris Optronics acquired colour reflective ChLCD patents from Fujitsu in 2016.11

AUO Display

AUO Display manufacturers the HiRaso family of ChLCDs.
